THE ADVANTAGES OF A SERVO MOTOR: They use up to 90% less power than clutch motors They are 1/3 lighter than clutch motors With a flick of the switch you can reverse motor rotation No parts to wear out or adjust. No matter how hard you press the foot pedal configured speed remains the same
MACHINE SPECIFICATIONS: Application: Medium-Weight Max Sewing Speed: 5000 Stitches per Minute Max. Stitch Length: 4mm Needle Bar Stroke: 30.7mm Lift of Presser Foot by Hand: 5.5 mm Lift of Presser Foot by Knee: 13 mm Unit dimensions: (LxWxH): 48 inches by 20 inches by 48 inches

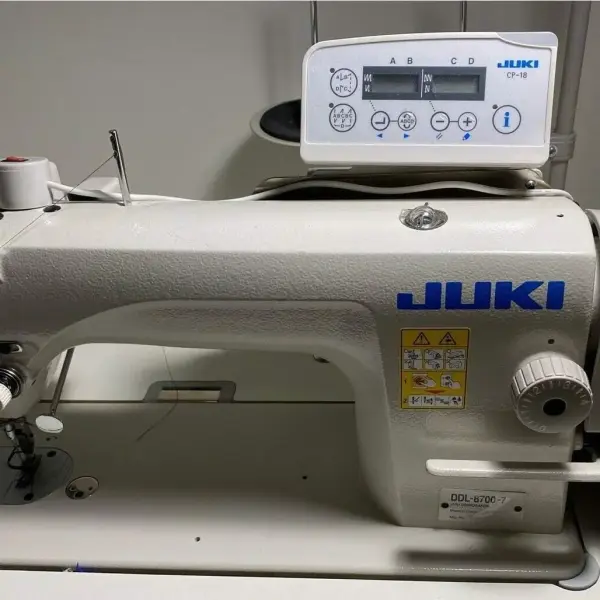

Needle: DB X 1, sizes 9-18 110V with Juki M92 servo motor, SC920 control box, and CP-18 panel Feed Dog: 4-row Hook: Automatic-lubricating full-rotary hook Lubrication: Automatic Lubricating Oil: JUKI MACHINE OIL 7 (equivalent to ISO VG7) Automatic Reverse Feed Function: Provided as standard
Control Box:SC-920C: Compact-size servomotor M92 (450W) Machine Motor: Single-phase 100～240V, 3-phase 200～240V Power Requirement: Single-phase 100～240V, 3-phase 200～240V Power Consumption: 320VA
SC-920 Control Box / M92 Servomotor The new model control box SC-920 has been newly developed The control box is resistant to voltage fluctuations, noise and vibration. The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines. It reduces power consumption during standby time when the motor is not rotating by approximately 25% (in comparison with the SC-910N).

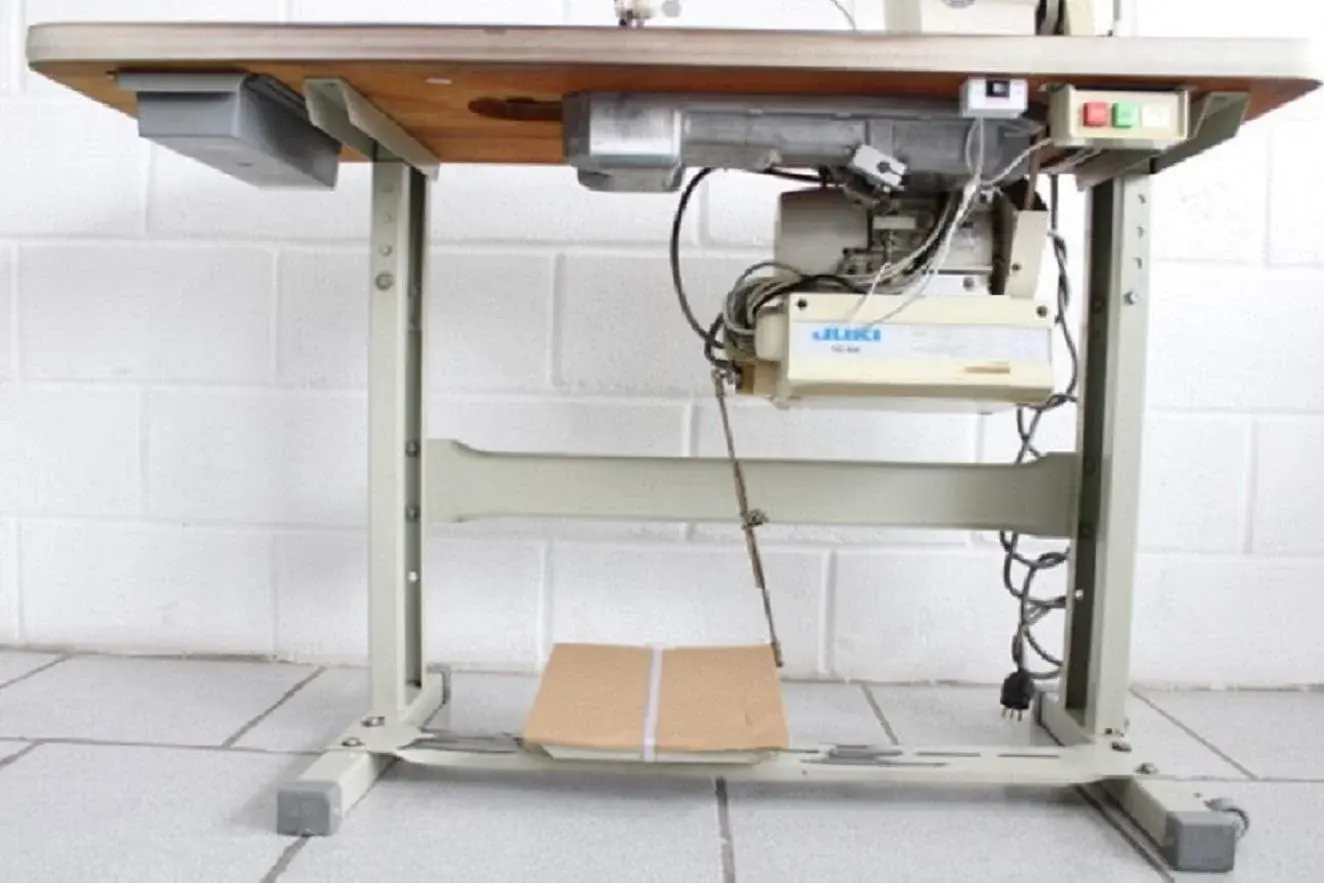

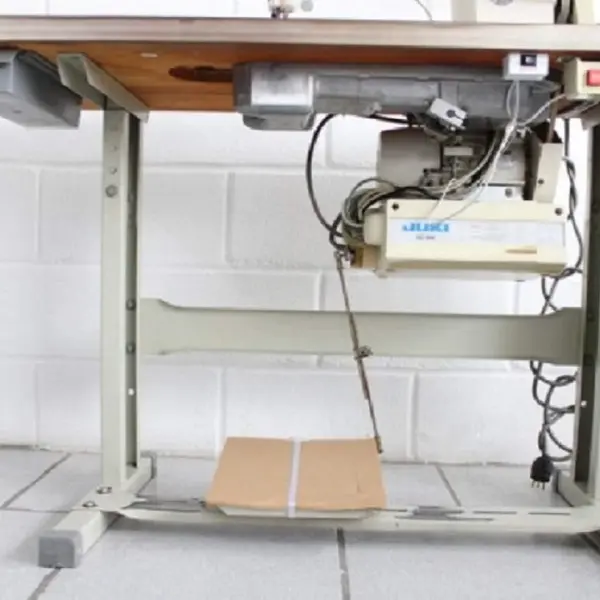

Fully Assembled Ready to Sew Complete with Table, Stand, 110V motor and Drawer. Fully Assembled Ready to Sew comes ready to plug in a wall. The machine is already mounted to pin hinges in the stand with the oil pan installed, belt tension adjusted, belt guard installed, and sewn off, You only have to pour in the oil and set up the thread stand
Ships Ground Freight Appointment required to be delivered.
